Headlight switch plus wiring loom for DL1



Here is the switch i made up for the headlights, fits where the std dash mounted dimmer switch went and looks nice and neat.

Loom for the DL1 i made, heat shrunk and soldered each conection and then shrunk the loom togehter so it is nice and tight.

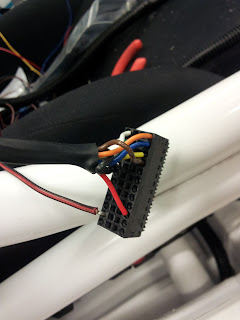

 There is where the rear loom feed that has the diff temp sensor in it comes into the front sensor loom. I made up a plug so it is seperate and easy to move around and made sure i labeled it
 Front main sensor loom conection to the DL1 loom

 Ran the rear loom nice and neatly along the edge and secured it with clips that go on
