Smashed Pinion Gear - R200 Diff

-
Broke the rear differential pinion gear at Oran Park recently and pulled it apart and replaced with a 4.08 ration crown and pinion


This is the new crown wheel




Old 3.69


Removing the sump plug you can see the large chunk picked up by the magnet



Dropping out the oil

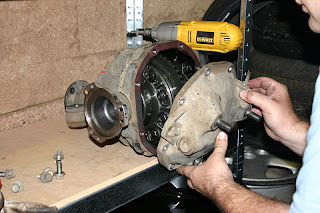

Removing the diff cover, impact wrench makes light work of it.

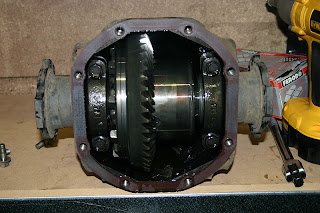

Cover off and nice big chunk of metal at the bottom

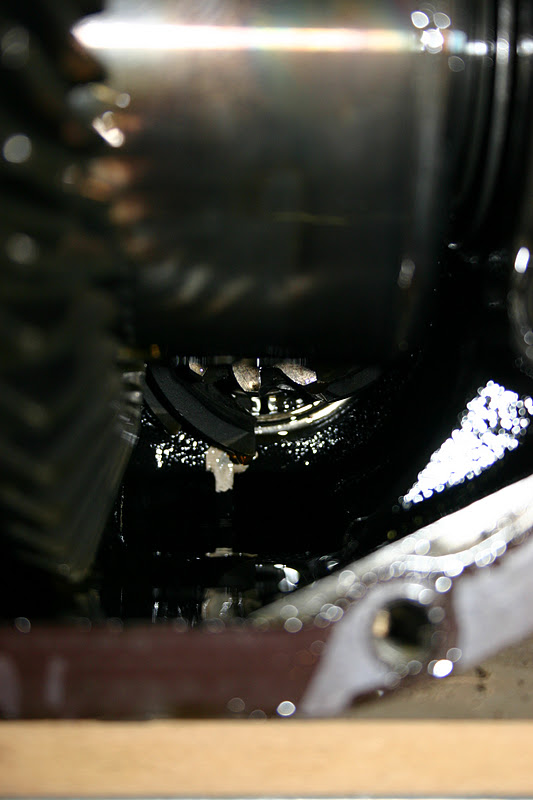

Shot looking at the pinion wheel





The pinion or whats left of it
